2 Front Hood Lift Support Struts Shock Rod Arms Gas Spring Fit 02-09 Ram OD

Brand	Unbrand
Manufacturer Part Number	OD6110001,SG314036,WGS-320,55276321AB,8196174
Interchange Part Number	7992XW,PM2028,14280,95980,4364
Other Part Number	Charged Arms Damper Prop Spring Rod Pair
Placement on Vehicle	Front,Left,Right
Surface Finish	Polished
Warranty	2 Year
Product Type	Struts
Color	Black
Bundle Listing	Yes
Fitment Type	Direct Replacement
Type	Struts
Material	Stainless Steel
Compatible Vehicle Model	0208 Dodge Ram 1500;03-09 Ram 2500/3500
Extended Length	18.98 inch
Stroke Length	8.94 inch
Compressed Length	10.04 inch
Package Size	21.3*2.0*0.8 inch
Return	Free Return Shipping on Damaged or Defective Items
Country/Region of Manufacture	China
Superseded Part Number	OD6110001
Mounting Hardware Included	No
Number of Pieces	2

Year	Make	Model
2002 - 2008	Dodge	Ram 1500
2003 - 2009	Dodge	Ram 2500
2003 - 2009	Dodge	Ram 3500

Fitment:
2002-2008 Dodge Ram 1500
2003-2009 Dodge Ram 2500
2003-2009 Dodge Ram 3500

Item-offered:

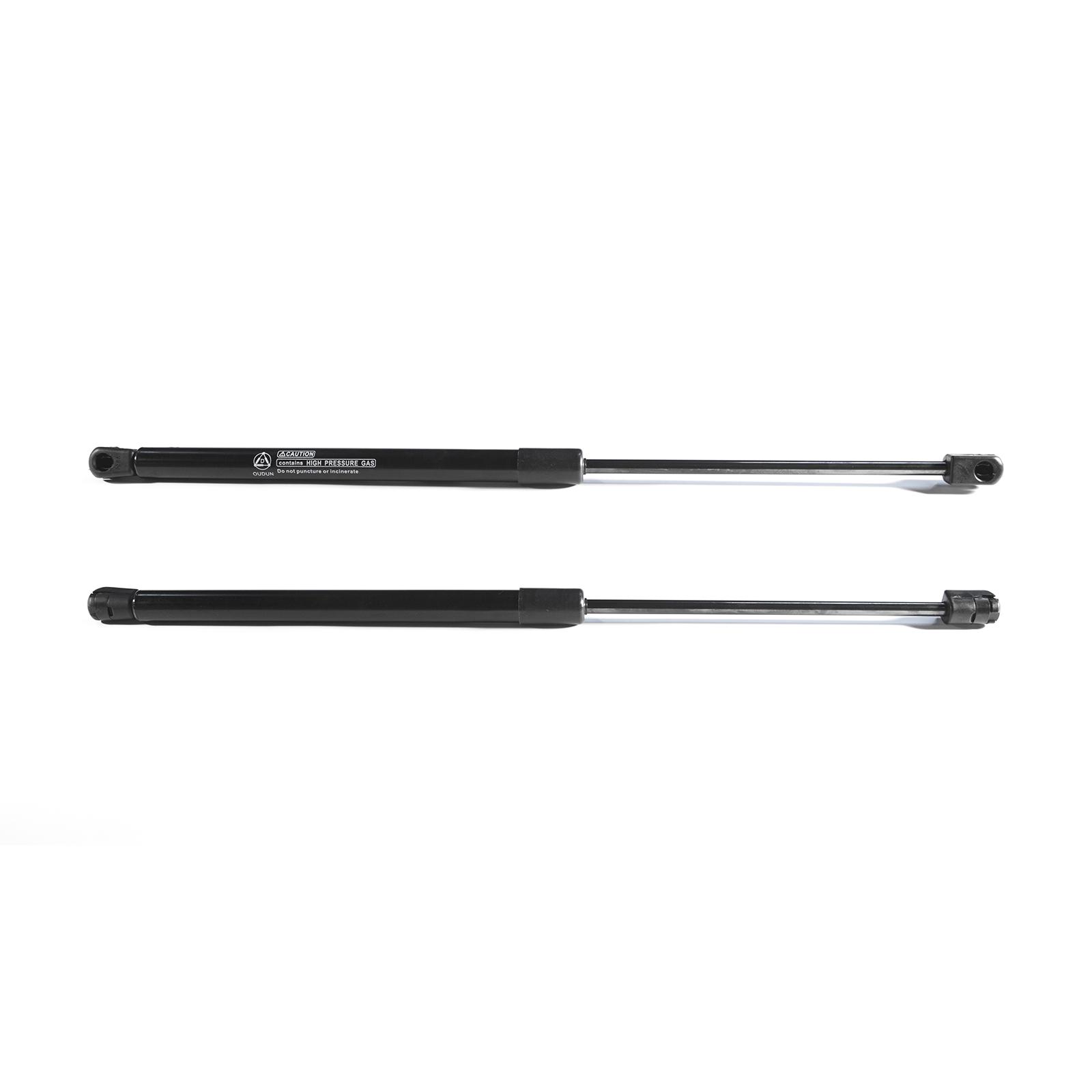

1pc Front Left Lift Support and 1pc Front Right Lift Support

Position
Front Left & Front Right

Parameters

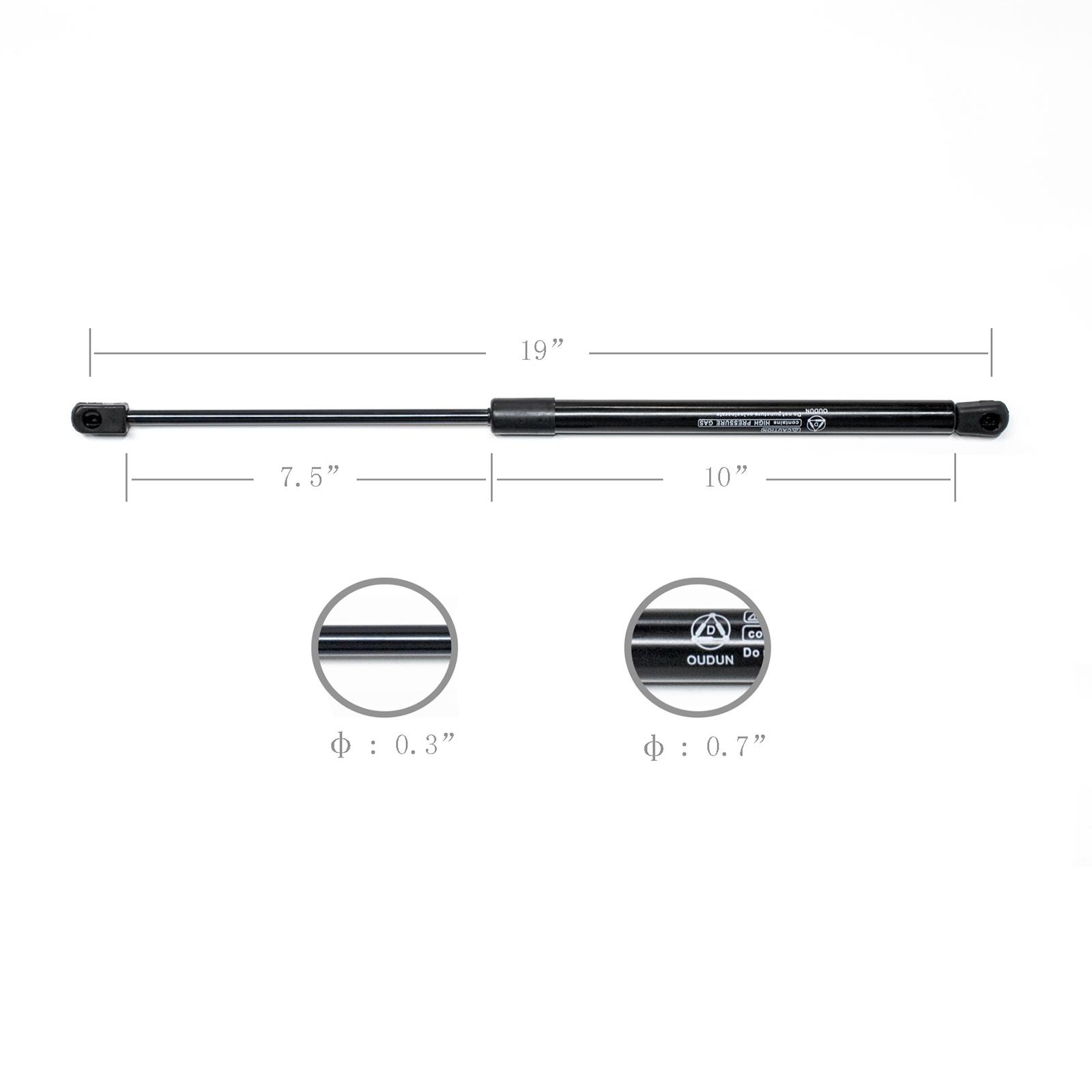

Extended Length: 18.98 inch
Stroke Length: 8.94 inch
Compressed Length: 10.04 inch

Material
Steel

Warranty
2 Year's Warranty

Color
Black

Installation Instructions
Always replace both lift supports to ensure top performance and to prevent twisting caused by uneven loading.

1.Turn off: If old lift support has a window demister electrical connection, carefully disconnect the fittings.
2. Before removing old lift supports, examine any fittings supplied to determine which components must be re-used.
3. Have someone hold the hatch, bonnet, boot or rear window open while replacing the lift supports.
4. Loosen the fasteners, remove 1 end while being prepared to fight the pressure in the strut, move the end so it's away from the bodywork, remove the other end, install that end of the new 1, wrestle the other end into place and tighten up.
5. Make sure all connectors and hardware are in place, tight and secure. Reconnect electrical terminals at both ends of the gas-charged lift support, if applicable to your car. Retain plastic end caps, if applicable to your car.

WARNING:
Use safety stands whenever a procedure requires you to be under the vehicle.

Features & Advantages
* Our Lift support have the industry’s highest quality in terms of long-lasting performance, smooth operation, functional safety, and ease of installation.
* Our Liftsupport have 2 Year's Warranty. * We feature the latest technology and most innovative features. Each gas charged lift support is tested in four different positions during compression and extension to measure speed and force. Each lift is then subjected to two overload tests to assure structural integrity and safety.
* Enhances performance through improved oil and gas Pressure sealing.
* Manufactured with bearing quality precision to promote longer operating life .
