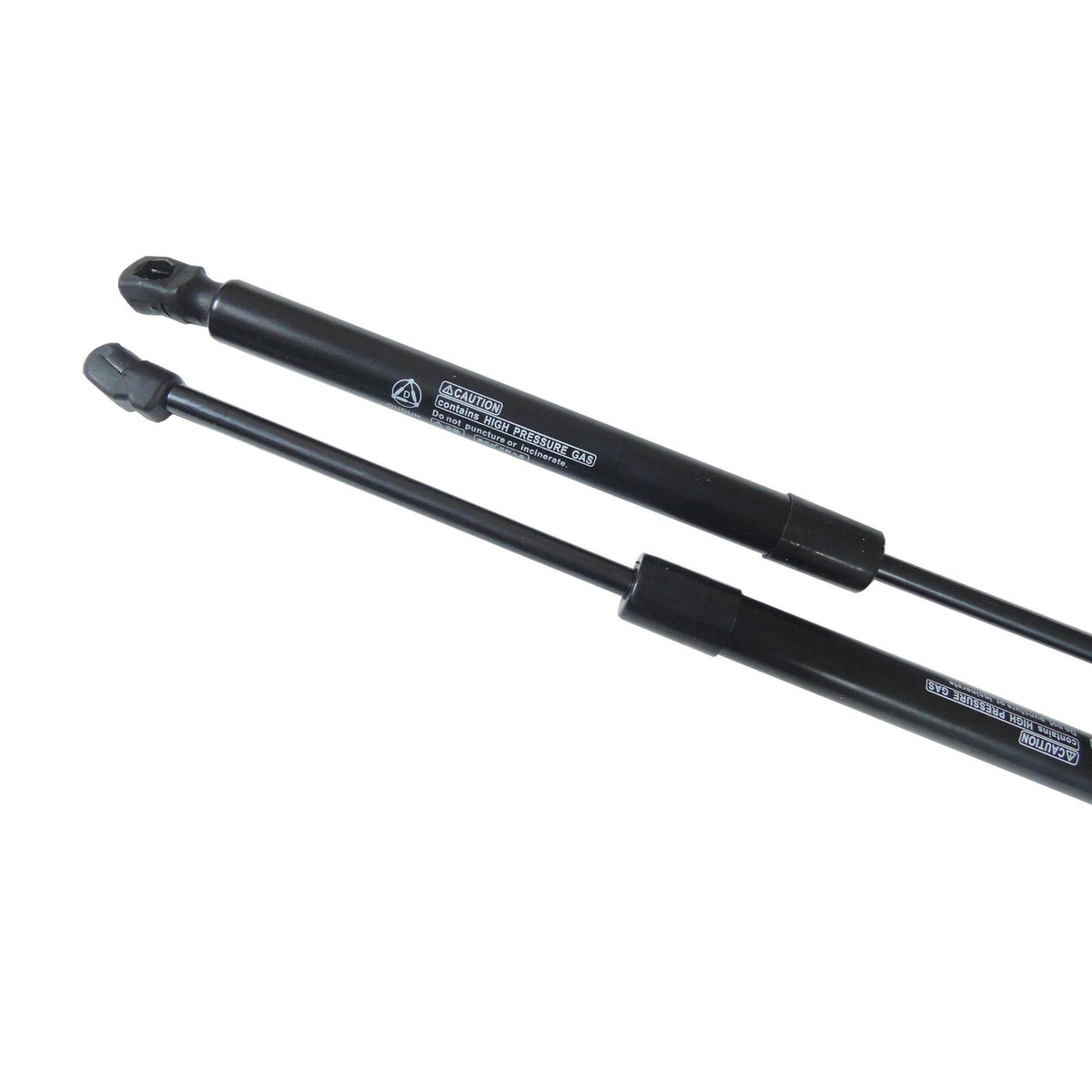

2pcs Front Hood Bonnet Gas Lift Support Strut Shock Fit 98-07 Land Curiser LX470
2pcs Front Hood Bonnet Gas Lift Support Strut Shock Fit 98-07 Land Curiser LX470
Couldn't load pickup availability
| Brand | Unbrand |
|---|---|
| Manufacturer Part Number | OD61001252,SG329040,WGS-394,LSC-0394,5344069025 |
| Interchange Part Number | 5345069035,5344069036,8196170,PM2027,D95998 |
| Other Part Number | Charged Arms Damper Prop Spring Rod Pair |
| Placement on Vehicle | Front,Left,Right |
| Surface Finish | Polished |
| Warranty | 2 Year |
| Product Type | Struts |
| Color | Black |
| Bundle Listing | Yes |
| Fitment Type | Direct Replacement |
| Superseded Part Number | 901658,014276,D4361,61320,4361 |
| Type | Struts |
| Material | Stainless Steel |
| Compatible Vehicle Model | 1998-2007 Toyota Land Cruiser & Lexus LX470 |
| Extended Length | 17.13 inch |
| Stroke Length | 6.3 inch |
| Compressed Length | 10.83 inch |
| Package Size | 21.7*2.0*1.2 inch |
| Return | Free Return Shipping on Damaged or Defective Items |
| Country/Region of Manufacture | China |
| Mounting Hardware Included | No |
| Number of Pieces | 2 |
Fitment:
1998-2007 Toyota Land Cruiser
1998-2007 Lexus LX470
Item-offered:

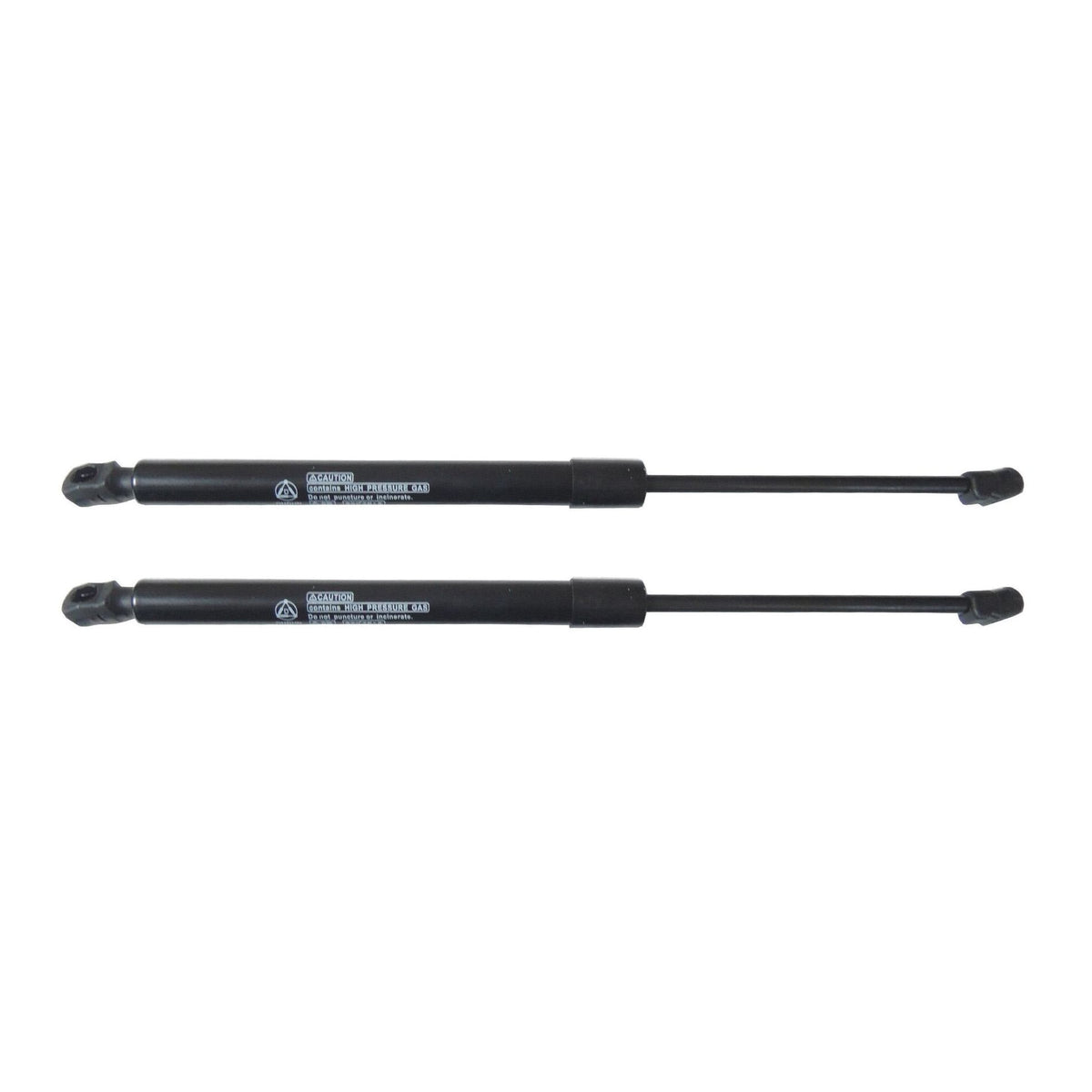

2pcs New Front Left+Right Hood Lift Supports
Location
Front Hood Left+Right

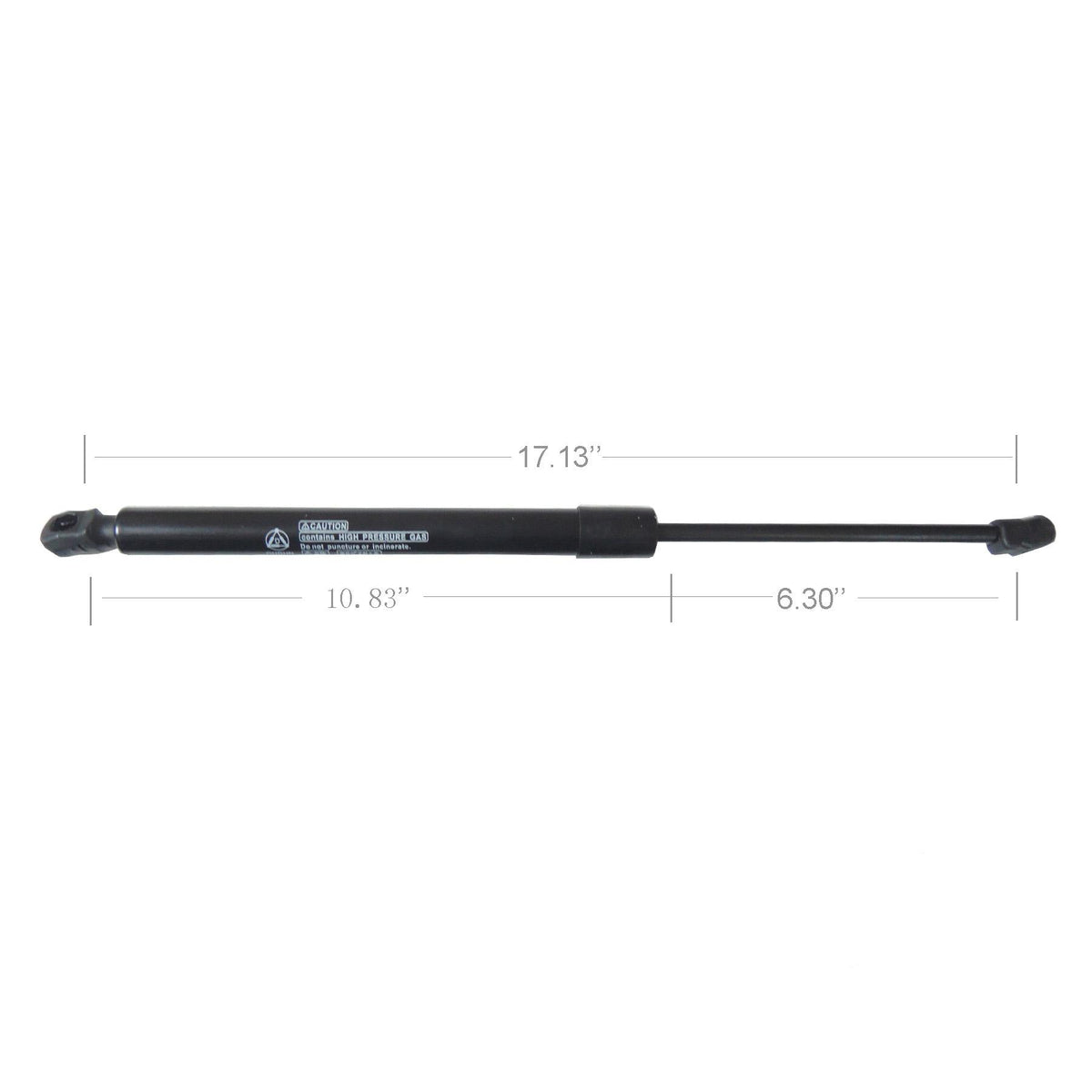

Parameters
Extended Length: 17.13 inch
Stroke Length: 6.3 inch
Compressed Length: 10.83 inch
Material
Steel
Cross-reference:
Can Replace The Following Part Numbers: SG329040; 4361; PM2027; WGS-394; LSC-0394; 8196170; 014276; 5344069036; D4361; 901658; D95998; 61320; 5344069025; 5345069035;
Warranty
2 Year's Warranty
Color
Black
Installation-instructions
Always replace both lift supports to ensure top performance and to prevent twisting caused by uneven loading.
1.Turn off: If old lift support has a window demister electrical connection, carefully disconnect the fittings.
2. Before removing old lift supports, examine any fittings supplied to determine which components must be re-used.
3. Have someone hold the hatch, bonnet, boot or rear window open while replacing the lift supports.
4. Loosen the fasteners, remove 1 end while being prepared to fight the pressure in the strut, move the end so it's away from the bodywork, remove the other end, install that end of the new 1, wrestle the other end into place and tighten up.
5. Make sure all connectors and hardware are in place, tight and secure. Reconnect electrical terminals at both ends of the gas-charged lift support, if applicable to your car. Retain plastic end caps, if applicable to your car.
WARNING:
Use safety stands whenever a procedure requires you to be under the vehicle.
Features-advantages
Features:
* Our Lift supports have the industry's highest quality in terms of long-lasting performance, smooth operation, functional safety, and ease of installation.
* Our Lift supports have 2 Year's Warranty.
* We feature the latest technology and most innovative features. Each gas charged lift support is tested in four different positions during compression and extension to measure speed and force. Each lift is then subjected to two overload tests to assure structural integrity and safety.
* Enhances performance through improved oil and gas Pressure sealing.
* Manufactured with bearing quality precision to promote longer operating life.
