2pcs Rear Trunk Lid Gas Lift Supports Strut Shocks Fit 01-06 Lexus LS430

Brand	Unbrand
Manufacturer Part Number	OD61001290
Interchange Part Number	AM-3369687769,64530-50030,64530-50031,SC-0590
Other Part Number	Charged Arms Damper Prop Spring Rod Pair
Placement on Vehicle	Rear,Left,Right
Surface Finish	Polished
Warranty	2 Year
Product Type	Struts
Color	Black
Bundle Listing	Yes
Fitment Type	Direct Replacement
Superseded Part Number	E95548,E6415,95548,6415
Type	Struts
Material	Stainless Steel
Compatible Vehicle Model	2001-2006 Lexus LS430
Extended Length	12.2 inch
Stroke Length	4.13 inch
Compressed Length	8.07 inch
Package Size	13.8*2.0*1.2 inch
Return	Free Return Shipping on Damaged or Defective Items
Country/Region of Manufacture	China
Mounting Hardware Included	No
Number of Pieces	2

Year	Make	Model
2001 - 2006	Lexus	LS430

Fitment:
2001-2006 Lexus LS430

Item-offered:

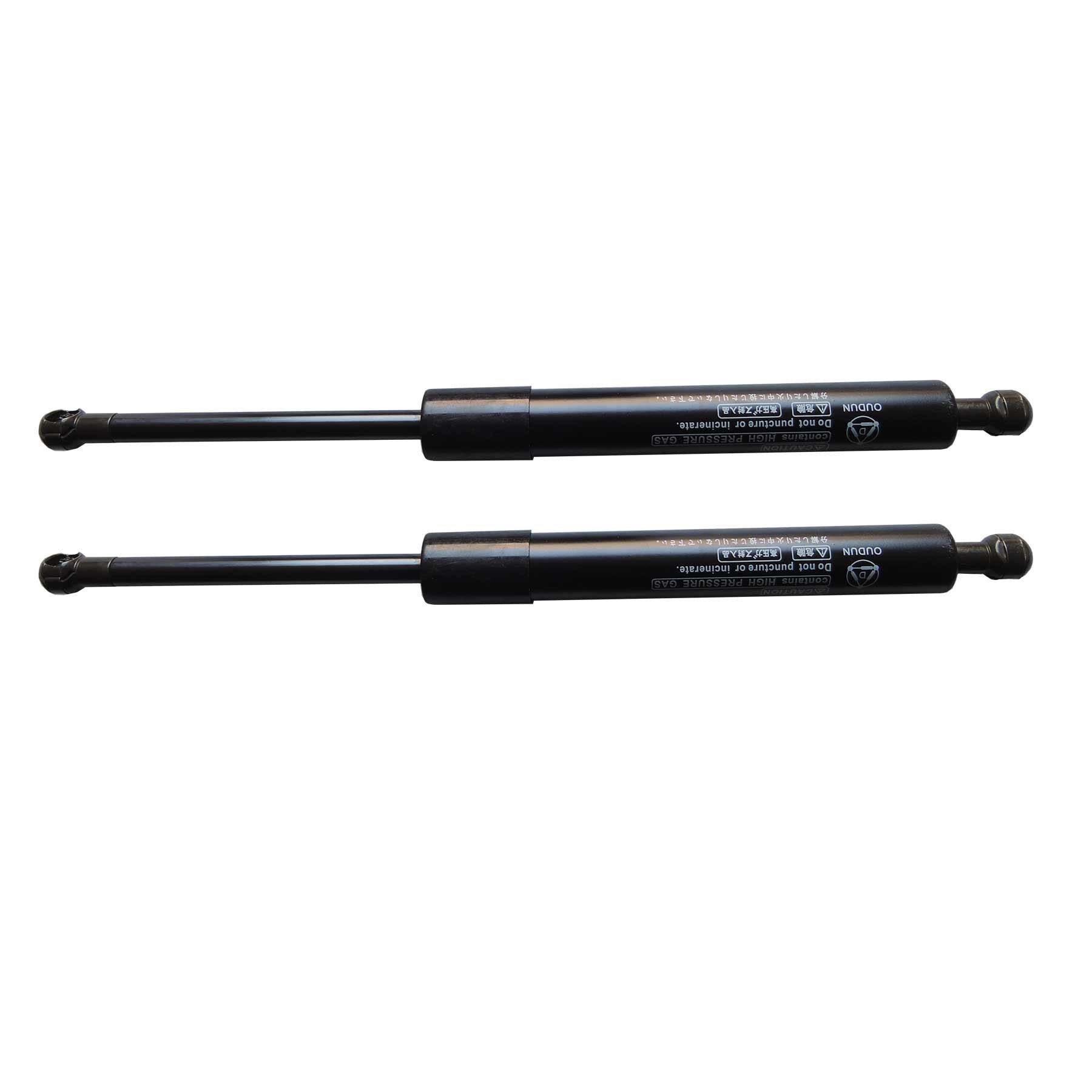

2pcs New Rear Left+Right Trunk Lid Lift Supports

Location
Rear Trunk Lid Left+Right

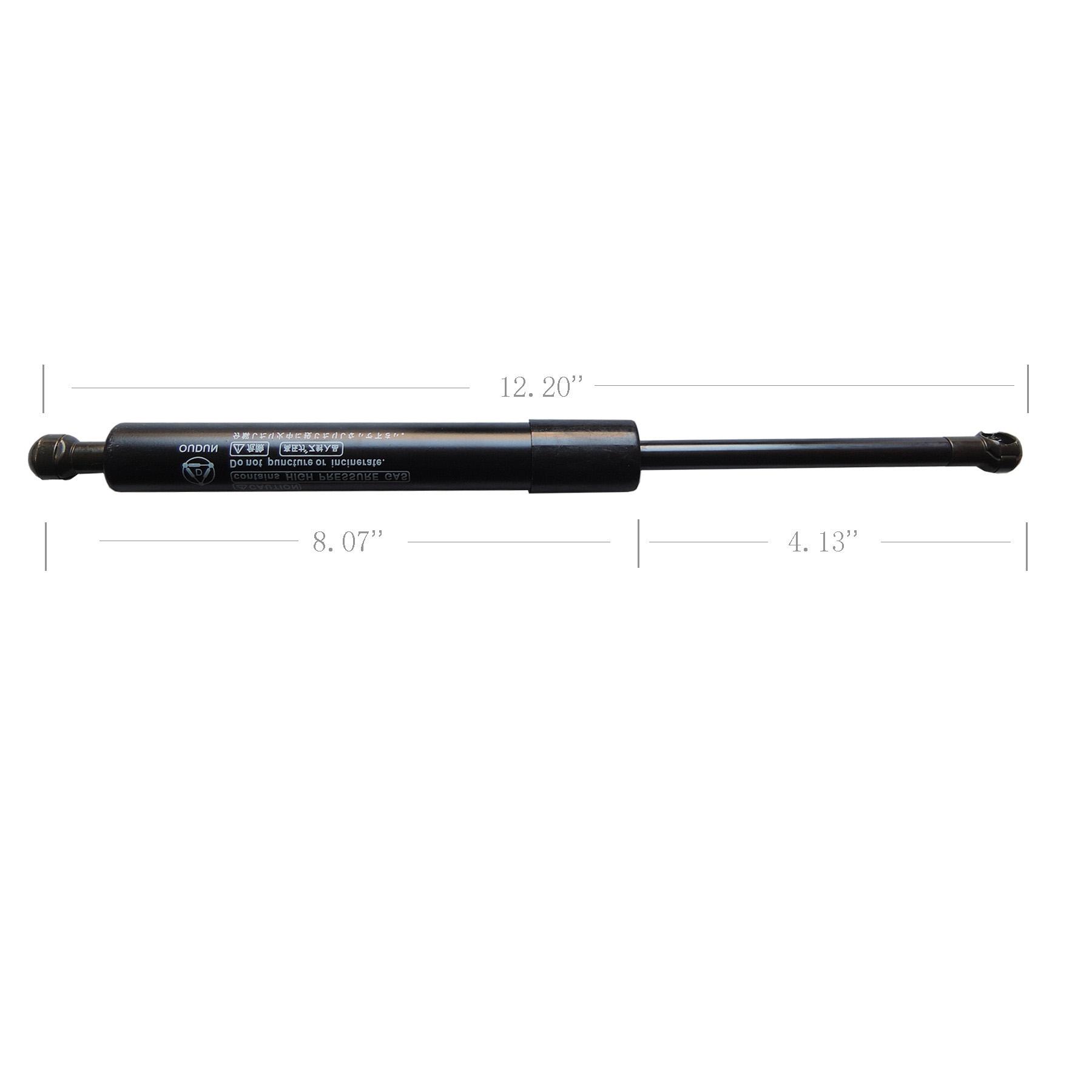

Parameters
Extended Length: 12.2 inch
Stroke Length: 4.13 inch
Compressed Length: 8.07 inch

Material
Steel

Cross-reference:
Can Replace The Following Part Numbers: SG429032; 6415; E6415; 95548; E95548; WGS-590; LSC-0590; 64530-50030; 64530-50031; AM-3369687769;

Warranty
2 Year's Warranty

Color
Black

Installation-instructions

Always replace both lift supports to ensure top performance and to prevent twisting caused by uneven loading.

1.Turn off: If old lift support has a window demister electrical connection, carefully disconnect the fittings.
2. Before removing old lift supports, examine any fittings supplied to determine which components must be re-used.
3. Have someone hold the hatch, bonnet, boot or rear window open while replacing the lift supports.
4. Loosen the fasteners, remove 1 end while being prepared to fight the pressure in the strut, move the end so it's away from the bodywork, remove the other end, install that end of the new 1, wrestle the other end into place and tighten up.
5. Make sure all connectors and hardware are in place, tight and secure. Reconnect electrical terminals at both ends of the gas-charged lift support, if applicable to your car. Retain plastic end caps, if applicable to your car.

WARNING:

Use safety stands whenever a procedure requires you to be under the vehicle.

Features-advantages

Features:
* Our Lift supports have the industry's highest quality in terms of long-lasting performance, smooth operation, functional safety, and ease of installation.
* Our Lift supports have 2 Year's Warranty.
* We feature the latest technology and most innovative features. Each gas charged lift support is tested in four different positions during compression and extension to measure speed and force. Each lift is then subjected to two overload tests to assure structural integrity and safety.
* Enhances performance through improved oil and gas Pressure sealing.
* Manufactured with bearing quality precision to promote longer operating life .
