3 Sets Of - Front Hood Lift Support Struts Shock Rod Arms Gas Spring Fit 02-09 Ram OD

Manufacturer Part Number	PM2028 SG314036 8196174 14280 7992XW 55276321AB
Interchange Part Number	4364 55276321ac RB8795980 95980 819-6174 WGS-320
Other Part Number	New Pair Shock Damper Charged Prop
Placement on Vehicle	Front,Left,Right
Surface Finish	Polished
Warranty	Yes
Country of Manufacture	China
Brand	Unbrand
Manufacturer Part Number	OD6110001,SG314036,WGS-320,55276321AB,8196174
Interchange Part Number	7992XW,PM2028,14280,95980,4364
Other Part Number	Charged Arms Damper Prop Spring Rod Pair
Warranty	2 Year
Product Type	Struts
Color	Black
Bundle Listing	Yes
Fitment Type	Direct Replacement
Type	Struts
Material	Stainless Steel
Country/Region of Manufacture	China;

Item	Content
Composite Product SKU	VX-A001-3009
Base Product SKU	A80015-OD6110001
Base Product Qty	3
Product Title	2 Front Hood Lift Support Struts Shock Rod Arms Gas Spring Fit 02-09 Ram OD
Product Status	Reviewed & Normal

Year	Make	Model
2002 - 2008	Dodge	Ram 1500
2003 - 2009	Dodge	Ram 2500
2003 - 2009	Dodge	Ram 3500

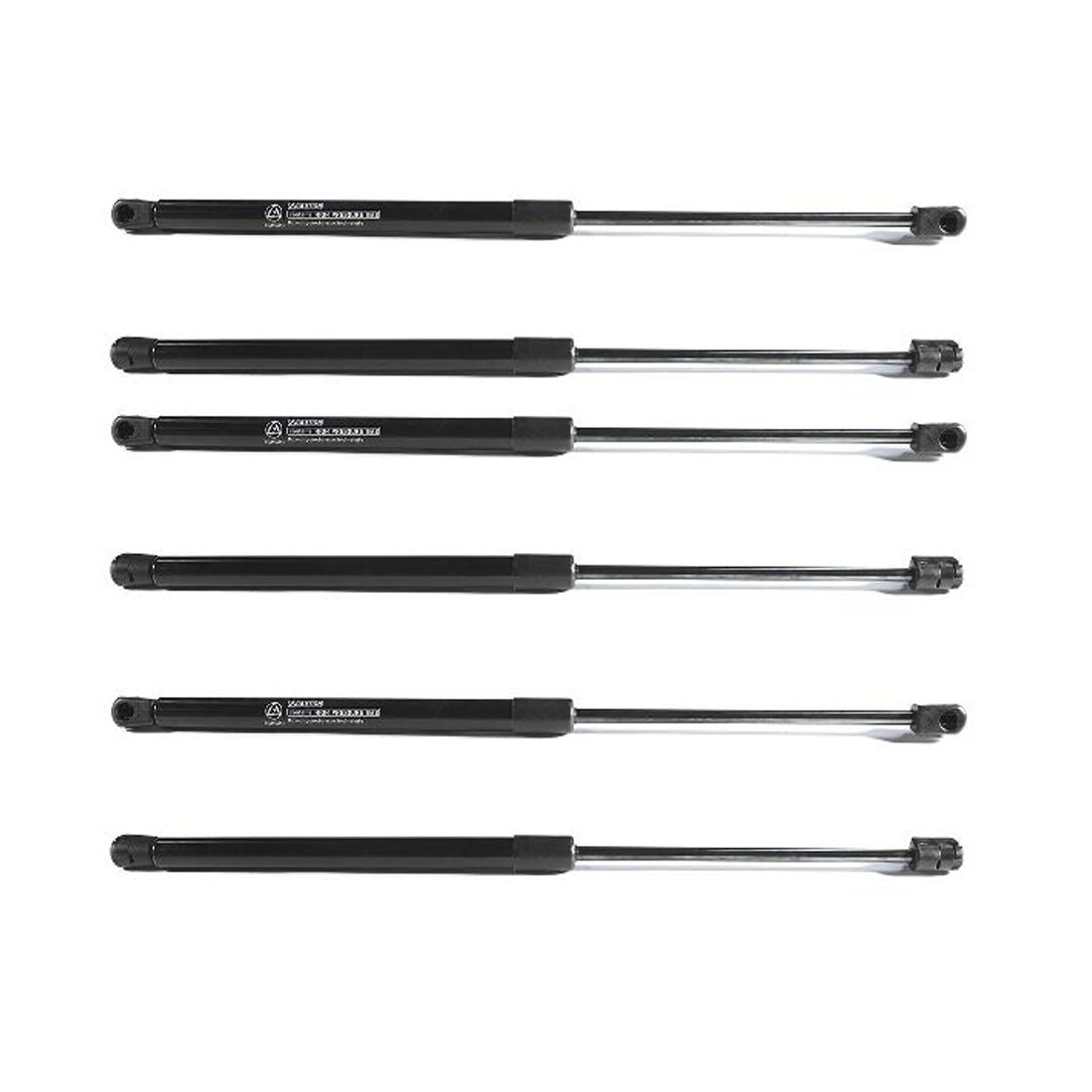

3 Sets of - Front Hood Lift support struts Shock Rod Arms Gas Spring Fit 02-09 Ram OD
Every set can be described as following:

Fitment:
2002-2008 Dodge Ram 1500
2003-2009 Dodge Ram 2500
2003-2009 Dodge Ram 3500

Item-offered:

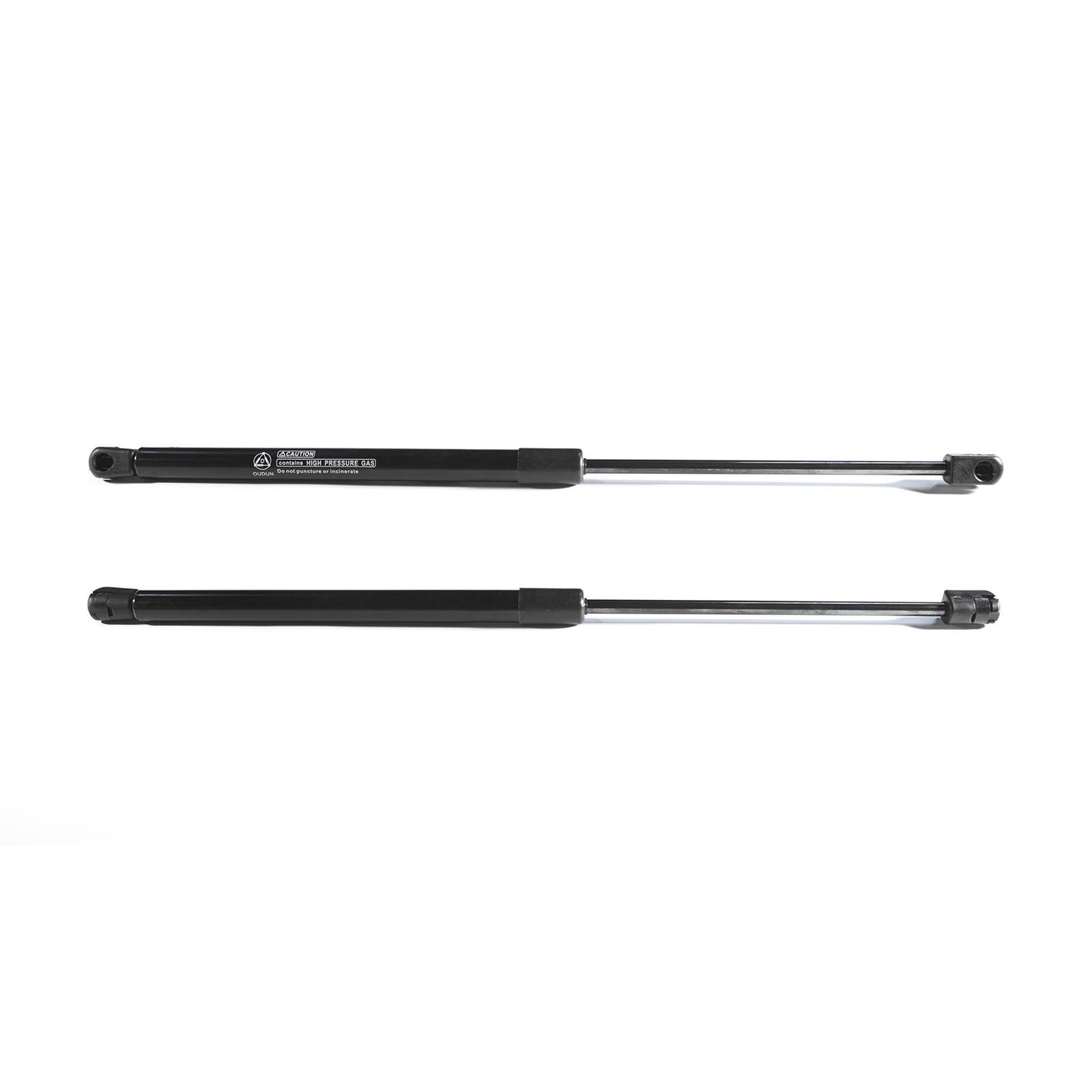

1pc Front left lift support and 1pc Front right lift support
Position
Front left & Front right

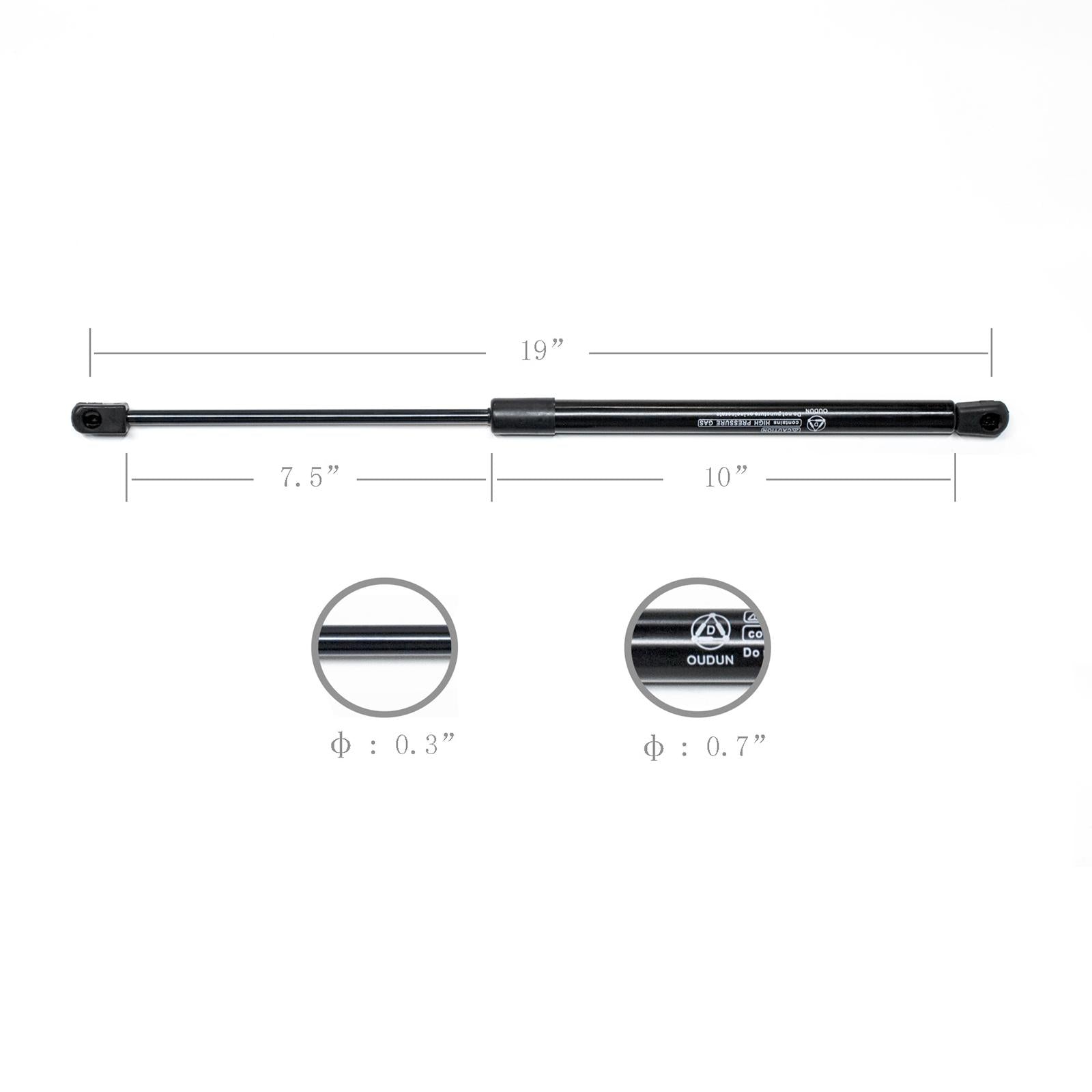

Parameters
Extended length:18.98"
Compressed Length:10.04"
Weigh:1.08 lbs

Material
Steel

Color
Black
InstallationInstructions

Always replace both lift supports to ensure top performance and to prevent twisting caused by uneven loading.

1. Turn off ignition. If old lift support has a window demister electrical connection, carefully disconnect the fittings.
2. Before removing old lift supports, examine any fittings supplied to determine which components must be re-used.
3. Have someone hold the hatch, bonnet, boot or rear window open while replacing the lift supports.
4. Loosen the fasteners, remove one end while being prepared to fight the pressure in the strut, move the end so it's away from the bodywork, remove the other end, install that end of the new one, wrestle the other end into place and tighten up.
5. Make sure all connectors and hardware are in place, tight and secure. Reconnect electrical terminals at both ends of the gas-charged lift support, if applicable to your car. Retain plastic end caps, if applicable to your car.

WARNING:

Use safety stands whenever a procedure requires you to be under the vehicle.

FeaturesAdvantages

 Our Lift support have the industry’s highest quality in terms of long-lasting performance, smooth operation, functional safety, and ease of installation.
 Our Liftsupport have 2 Year's Warranty. We feature the latest technology and most innovative features. Each gas charged lift support is tested in four different positions during compression and extension to measure speed and force. Each lift is then subjected to two overload tests to assure structural integrity and safety.
 Enhances performance through improved oil and gas Pressure sealing.
 Manufactured with bearing quality precision to promote longer operating life.
