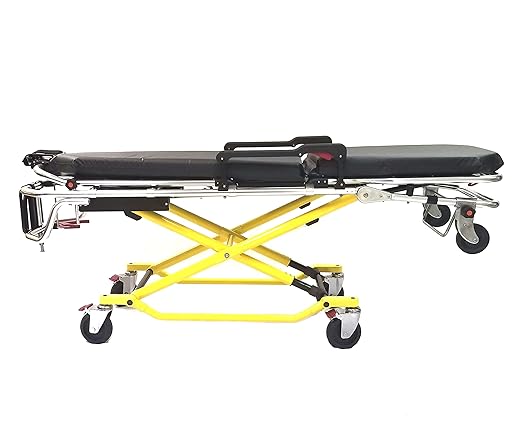

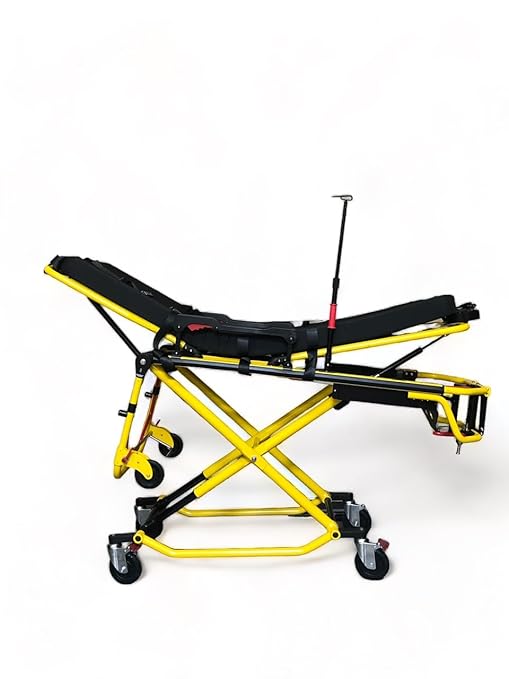

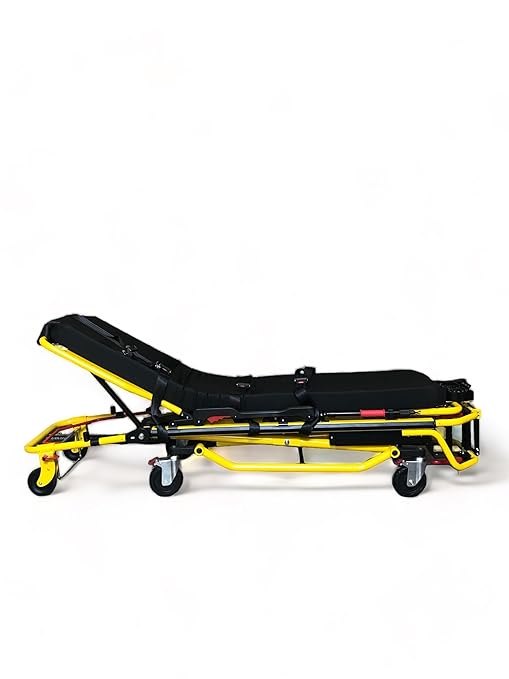

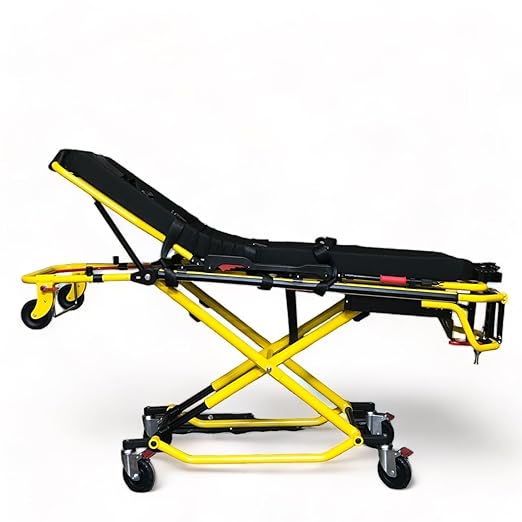

• Adjustable height includes 7 locking positions * X-frame undercarriage is easily raised when loading * Constructed of high-strength aluminum alloy * Pneumatic Adjustable Backrest: 0 - 65 degrees
• Locking side rails collapse for safe patient loading and unloading * Safety locking device keeps stretcher locked in place while the transport vehicle is in motion * When unloading, the safety U-bar will hold the stretcher on the ambulance until the operator releases it * Breakaway head section secured with hook and loop fasteners
• Included accessories: 4 inch seamless welded foam mattress, (3) Vest type belts for chest, hip, and knee, Transport Safety Locking Device, IV pole included
• Positions Head End / Foot End Position 1: 17in /19in Position 2: 24in / 26in Position 3: 29in / 29in Position 4: 32in / 32in Position 5: 36 in / 34in Position 6: 39in / 35in Position 7: 43in / 37in Position 8: 46in / 38in Position 9: 49in / 38in
• Max Vehicle Loading Height for this stretcher is 33.5" (distance from ground to loading platform: ie. van bumper or ambulance loading dock) see attached pdf for measuring instructions
